WaterDog – 525 Gallon Tank

WaterDog – 525 Gallon Tank

The 525 gallon water trailer is offered in four different setups. This medium sized trailer has the featured benefits of still being easily maneuvered, but also contains a good amount of water. This trailer will require a tow vehicle at least the size of 1/2 ton pickup.

Styles

Workhorse

This trailer is by far one of our most popular configurations. The Workhorse features the ability to self-load, the convenience of rear spray, fire and garden hose connections, hydrant fill capability, as well as a mounted hose reel equipped with 100′ of 1″ hose. This trailer has great appeal for both contractors and the individual looking for a trailer that can do it all!   Click to see specs >

Municipal Special

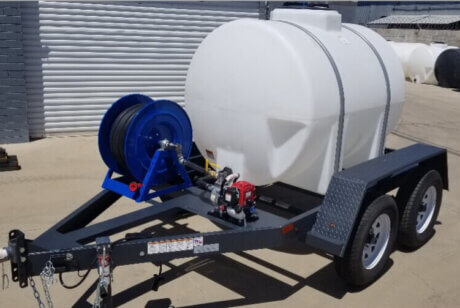

The complete water trailer, with equal advantage of both maneuverability and water holding capacity. This trailer comes equipped with a Honda WX10 pump that feeds into a hose reel holding 100′ of 1″ hose with an adjustable nozzle and hydrant fill ability.    Click to see specs >

Arena / Firefighter

This trailer is perfect for watering horse arenas, roads or parking lots, fire fighting, dust control at home or on the job site, and equipment washing. This unit includes rear spray and a fire hose, both powered by a Multiquip QP2H pump (operating ability of up to 158 gallons per minute at 56 psi).    Click to see specs >

Potable Water Transport

Compact potable water trailer excellent for supplying drinking water. The black polyethylene tank prevents ultraviolet rays from penetrating into the tank and thus prevents any algae growth.   Click to see specs >

Potable Water Pumper

Compact potable water trailer excellent for supplying drinking water. The black polyethylene tank prevents ultraviolet rays from penetrating into the tank and thus prevents any algae growth.   Click to see specs >

Tank and Trailer

This trailer is ideal for transporting large quantities of water. The tank will allow water input through the 16″ manhole, and we will install a 3/4″ hose bib connection to gravity-fed the water out.   Click to see specs >

General Specifications

  • capacity – 525 gallons
  • Dimensions
    • length – 71″
    • overall width – 49”
    • height – 54”
  • Frame Size – 5’ x 10’’
  • Weight
    • empty – 1,600 lbs
    • loaded – 5,978 lbs
  • GVWR – 7,000 lbs
  • GCWR – 5,700 lbs
  • Axle – tandem 3,500 lbs
  • Brakes – electric on both axles with break-away system
  • Wheels – white spoke
  • Hitch (coupler) – adjustable 2” ball with Bulldog coupler ball
  • Tires – ST205/75D15
  • Jackstand – rated at 7,000 lbs lbs
  • Frame – 5″channel steel angle
  • Tank
    • Polyethylene 3/8” thick
    • Horizontal leg style
    • 16” manhole
    • 4” vent cap for filling and venting
    • Tank adapter in lower end for draining
    • Repairable and recyclable
  • Lights – DOT approved
  • Safety Chains – DOT approved
